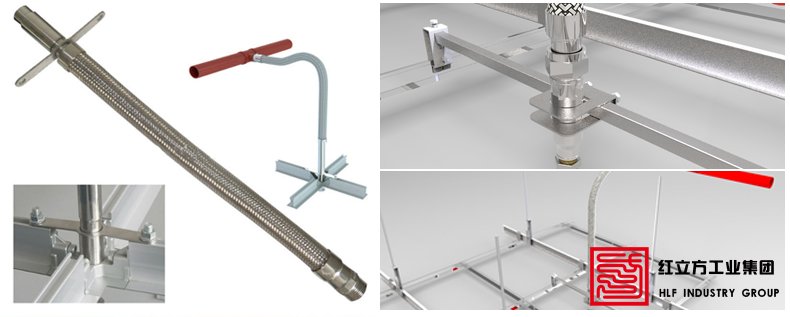

紅立方軟管噴淋軟管和連接適配器可被安全地用于滅火系統，由于其結構未受著地震運動和編織管的耐熱和壓力，重要的是不依賴于安裝線設計。該產品具有防火、防滲漏、防微塵的三重保護，可應用于幾乎所有的天花板系統。 有使用紅立方軟管花灑軟管和連接適配器安裝自動噴水滅火系統的許多優點。全不銹鋼結構,粉塵與污染物，防腐蝕，保證緊急情況下能噴出水來;良好的可撓性，可有效降低因傳統硬管配置誤差所產生的應力，進而降低龜裂的情形發生;安裝簡單，保守講其裝配速度是傳統硬管的20倍!施工方便、省時、省成本、取代傳統施工繁復丈量尺寸、切管、車牙接管、鎖緊等程式，有效減少人工成本。若重新裝配或設計變更時，能夠方便且快速的位移; 軟管的出水噴淋側可在垂直軸調整, 噴頭和孔罩的高度可以相對于天花板進行調整。非常方便輕松地安裝設備到天花板與它的連接適配器。對地震運動更安全自動噴水滅火系統和可調節的較小工藝時間，紅立方軟管消防噴淋軟管產品用于液壓設計的濕法或干法管灑水連接使用，并直接連接到消防噴頭。
紅立方軟管 sprinkler hose and connection adapter can be safely used in fire extinguishing systems, because of its structure is not being affected by the heat and pressure of seismic movement and braided tube, the most important thing is not dependent on the mounting line design. There use 紅立方軟管 shower hose and connection adapter installation of automatic sprinkler system many advantages. Sprinkler hose side can adjust the height of the vertical axis, the nozzle and the escutcheon can be adjusted relative to the ceiling. Very convenient and easy to install equipment to the ceiling with its connection adapter. Seismic motion safer sprinkler system and an adjustable minimum process time, 紅立方軟管 fire sprinkler hose products for the hydraulic design of wet or dry pipe sprinkler connection, and a direct connection to fire sprinklers.

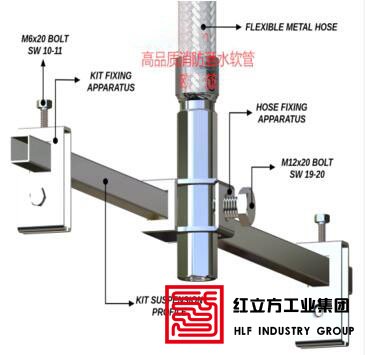

紅立方軟管生產的自動噴水滅火系統使用的軟管正在取得相關安全認證，每一件產品均按相關的標準生產。它表明測試，如壓力，溫度，fatigued，需要提供樓宇消防安全振動被批準組織實施，產品具有聲明的技術規范和檢查是定期進行檢查，根據經批準的規范是否生產。安裝灑水系統，當ATH花灑軟管和Connection適配器的設計是為了解決可能出現的問題經驗豐富。 他們提供包括螺栓，使簡單，快速的安裝下述吊頂系統。ATH靈活的花灑軟管連接降低退化所造成的地震運動的可能性。這是很重要的安全系統能夠工作無問題。
紅立方軟管 production hose sprinkler system is being used to obtain the relevant safety certification, each product according to the relevant standards. It showed tests, such as pressure, temperature, fatique, the need to provide building fire safety organization and implementation of vibration is approved, the product has a statement of the technical specifications and inspections are regularly inspected, whether produced in accordance with the approved specifications. Installation of sprinkler systems, when 紅立方軟管 shower hose and Connecton adapter is designed to solve problems that may arise experience. They offer include bolts, so the easiest, fastest installation below ceiling system. 紅立方軟管 flexible shower hose connections reduce the possibility of degradation caused by seismic movement. This is a very important safety system can work without problems.

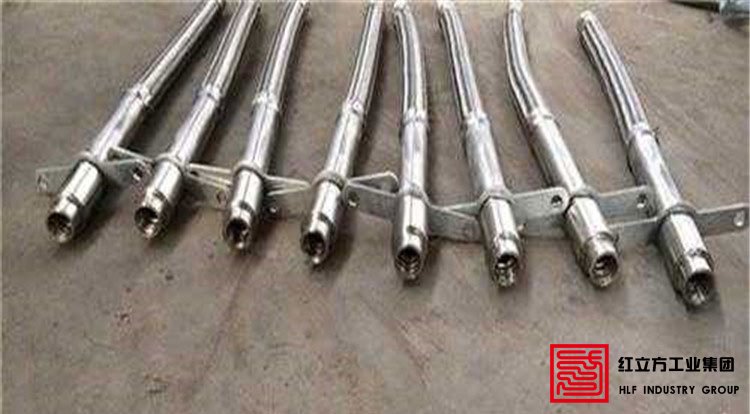

編織不銹鋼靈活灑水噴頭軟管和配件
Braided Stainless Steel Flexible Sprinkler Hoses with Fittings
型號/Model Name：: OH-25F
產品說明/Description: DN 25 Braided
應用領域/Application: 無塵室Clean Room
工作壓力/Working Pressure: 200 psi (1380 kPa)
長度/Length: 700mm, 1000mm, 1200mm, 1500mm, 1800mm
彎曲半徑能小到/Minimum Bending Radius:175mm (7 in.)
減速機尺寸Sprinkler Reducer Size: 1/2” NPT/BSPT/RP
尼普尺寸Nipple Size: 1” NPT/BSPT
管體材質Hose Material: SUS304
Can be used with most common ceiling grids used in clean room application on the market.

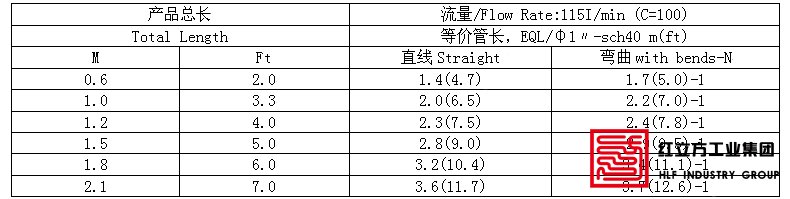

編織不銹鋼靈活灑水噴頭軟管的尺寸
備注NOTE：N:90度彎曲數NO.of 900 bend
產品特性說明/Features of the Sprinkler Hose
1.耐壓性能Pressure capabilities：
額定壓力Rated working pressure：12.3kg/cm2,175psi
耐壓壓力Hydrostatic pressure：49.3kg/cm2,700psi
爆破壓力Burst pressure：98.5kg/cm2,1400psi
2.品質安全性能Quality&Security of products
a.單件式管體與不銹鋼結構設計，工本測壓，現場無涂裝或封膠需求。
One piece style and stainless steel structure.leakage test in the shop.Require no painting or epoxy coating.
b.良好可撓性與活動固定翅，有效降低因地震或結構位移所造成之骨架變形或管線龜裂。
Good flexibility and floating fixing plate structure reduce the risks of ceiling deformations and pipe cracks caused by the earthquake or the structural offset effectively.
3.施工安全性能Installation with security
a.螺絲件固定，結構簡單，施工安全性高。
Construction with screws.Provide builders with security.
b.安裝或維修保養期間，不僅可保持工作區潔凈，更不需停工或者停機，有效加速無法室之運作。
Keep the factory or working site clean during installation.Require no dpwntime for routine inspection and replacement.Accelerate the clean room rumming effectively.
